CuCo1Ni1Be—CW103C (DIN 2.1285) Cobalt Nickel Beryllium Copper Alloy contains approximately 1% Cobalt, 1% Nickel and 0.5% Beryllium. After hot forging and heat treatment processes this material gains considerably hardness, electrical and thermal conductivity as well. It is possible to have different combinations of electrical conductivity and hardness by changing the heat treatment conditions;CuCo1Ni1Be also Offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively, all of its properties are quite the same as CuCo2Be-C17500 and CuNi2Be-C17510.

Electrical: Fuse Clips, Switch Parts, Relay parts, Connectors
Industrial: Spot Welding Electrodes, Electrode holders and Seam Welding discs in Resistance Welding, Plunger Tips in Aluminum Die Casting Machines, Injection Nozzles, Cooling Pins in Plastic Injection Machines, Mulds for Casting of Non-Ferrous Materials, Tooling for Plastic Moulds ,Butt Welding Jaws, Contact Tips for Submerged-Arc-Welding

Available Sizes:
Custom Diameter & Sizes, Random Mill lengths

Available Products (forms):

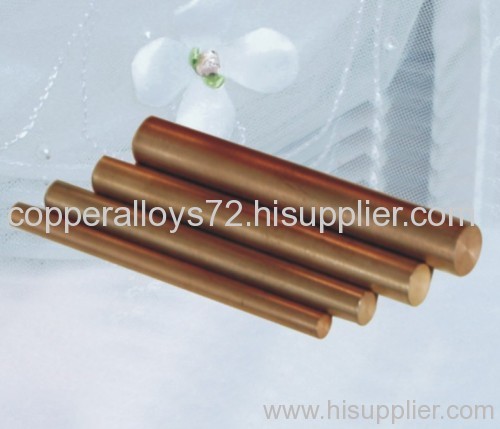

Round bars, Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets
Custom shapes are available upon request.

Be: 0.40-0.70%
Co: 0.80-1.30%
Ni: 0.80-1.30%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties:

Density (g/cm3): 8.83
Density before age hardening (g/cm3): 8.75
Elastic Modulus (kg/mm2 (103)): 14.10
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity: 209 W/m • oK at 20 C
Melting Range (°C): 1000-1070

Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.

Rods/Bars/Tubes: ASTM B441, SAE J461,463; RWMA Class 3
Sheets: ASTM B534
Wires: ASTM B441
Plates: ASTM B534, SAE J461,463; RWMA Class 3

European Standards: CuCo1Ni1Be, DIN 2.1285; CW103C to EN

Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification (Published by SAE)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced to ASTM.

Mechanical Properties:

The Mechanical Properties will be available on request from customers.

Rods/Bars: A(TB00),H(TD04),AT(TF00),HT(TH04)
Sheets: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04),AT(TF00)
Wires: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
Plates: AT(TF00),HT(TH04)
